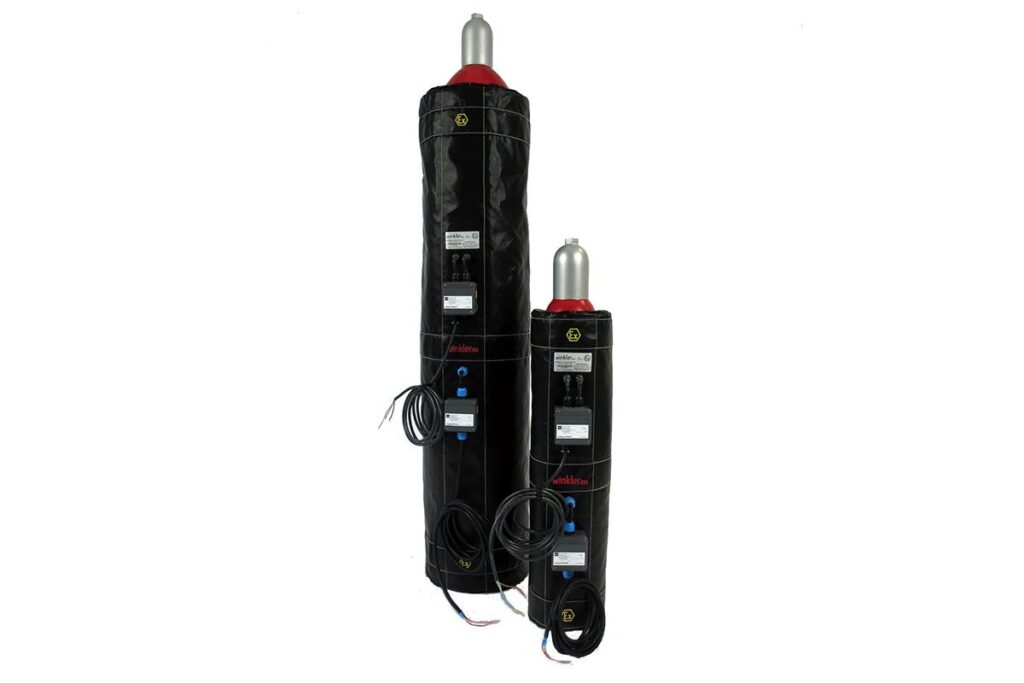

ATEX-approved gas cylinder heaters for potentially explosive atmospheres

Our gas cylinder heaters are designed to heat metal gas cylinders to prevent condensation, increase pressure and control temperature. With built-in 2-RTD sensor system, full insulation and water-resistant design, these heaters are ideal for use outdoors or in wet environments. They are ATEX approved for use in potentially explosive atmospheres. Adjustable straps and buckles make installation quick and easy.

I would like more information
Please leave your contact information in the form below, and we will get in touch with you!

Features:

Temperature range up to 200 °C (392 °F)
Robust construction - suitable for indoor and outdoor use
IP65 rating - complete dust and water protection
Fully insulated design for maximum heating efficiency
Improves process control and reduces loss of condensed gas
Gases that benefit from heating:

SF₆, propane, nitrogen, oxygen, BC13, WF6 and HF2
Built-in PT100 RTD sensors for process and temperature monitoring

Technical specifications:

Nominal voltage: 230 VAC
Operating temperatures:
- Under pressure: -40 °C to +50 °C (-40 °F to +122 °F)
- Without pressure: -40 °C to +200 °C (-40 °F to +392 °F)
Ambient temperature: -40 °C to +60 °C (-40 °F to +140 °F)
Temperature class: T6, T5, T4, T3 (depending on temperature limitation)

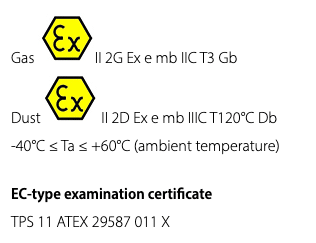

ATEX zones:
- Gas: Zone 1/2
- Dust: Zone 21/22
Sensors: 2 pcs. 3-wire PT100 RTD sensors
Power cable: 3 m (10 ft) with terminated conductors (crimped ends)
Degree of protection: IP65
