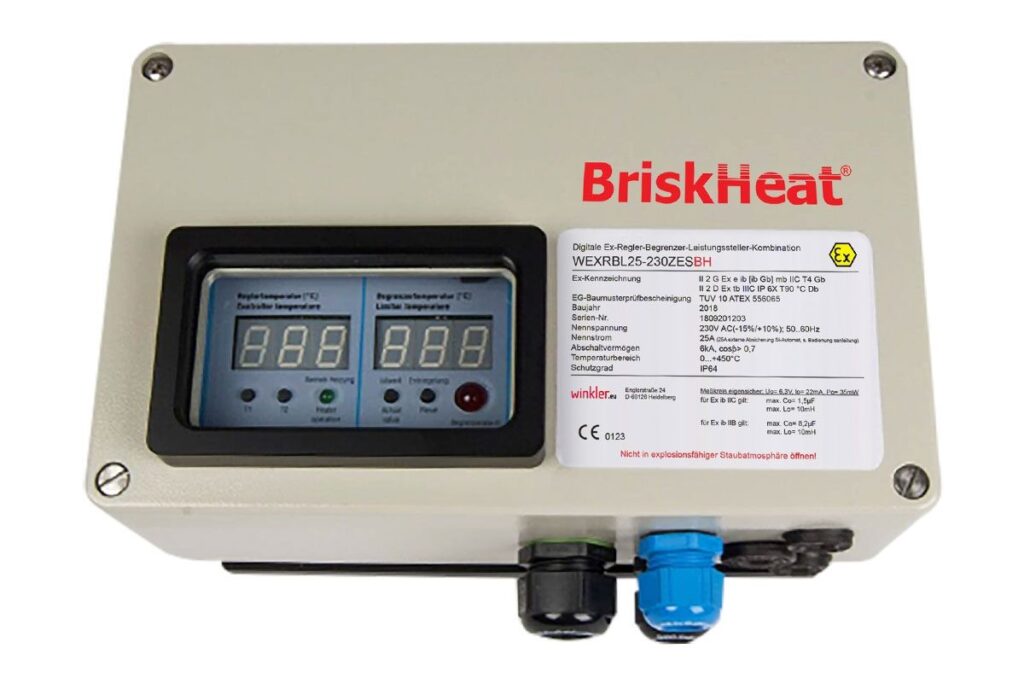

This ATEX-approved digital temperature controller with built-in limitation function is specifically designed for use with ATEX heaters in potentially explosive gas and dust environments. The device combines both controller and safety limiter in one robust aluminum enclosure with easy viewing through a glass window.
I would like more information
Please leave your contact information in the form below, and we will get in touch with you!
Voltage: 230 VAC
Max output: 25 A
Dimensions: 260 mm x 160 mm x 135 mm
IP rating: IP64
Temperature Control Range: 0 °C to 150 °C
Operating temperature range for controls: -20 °C to +40 °C
Ambient temperature range: -40 °C to +60 °C
2 pcs. Ex-PT100 RTD temperature sensor inputs
One for control
One for temperature limit
Signal indicators for sensor break and short circuit
LED indicator light
Programmable digital controller with display in °C
Dual 3-digit displays - one for controls, one for limiters
Adjustable energy limiter for low resistance elements
ATEX approval for gas and dust:
Gas: II 2G Ex e ib [ib Gb] mb IIC T4 Gb
Dust: II 2D Ex tb IIIC IP6X T90 °C Db
Temperature class (dust): T120 °C
Certificate: EC-type examination certificate TÜV 10 ATEX 556065
Robust aluminum enclosure with mounting plate and fasteners
