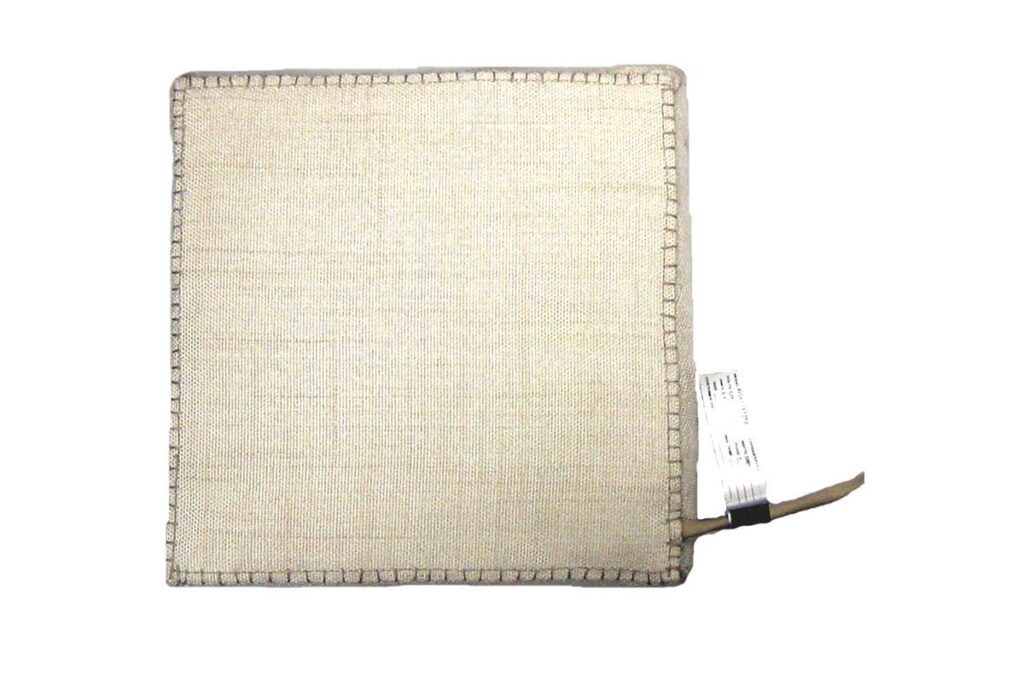

High temperature composite curing heating blankets (FGH and SXH)

Norske Backer SXH High Temperature Composite Curing Blankets are made with a heating element and a 1” (25mm) layer of high-density fiberglass, covered in a Samox Cloth. The SXH are design for use with the newer high temperature thermoplastic and polyamide composite materials.

  • Highly flexible up to 25 mm radius.
  • Power cord 1.8 m long with optional plug.
  • Compatible with ACR 3 Hot Bonders and your current equipment.
  • Excellent heat uniformity.

Temperature controller is required for the use of this product.

I would like more information
Please leave your contact information in the form below, and we will get in touch with you!

  • Multi-wire heating element is evenly placed to maximize heat distribution.
  • Abrasion-resistant fiberglass cloth.
  • Maximum Exposure Temperature:
    • - FGH series: 427 °C (800 °F)
    • - SXH series: 593 °C (1100 °F)
  • Power Density:
    • - FGH series: 1.1 W/cm² (7 W/in²)
    • - SXH series: 2.0 W/cm² (13 W/in²)
  • Flexibility: 25 mm radius.
  • Dielectric strength: Over 2000 volts.
  • Choice of voltage: 120 VAC or 240 VAC.
  • Heating element construction: The heating element and a 25 mm layer of high-density fiberglass are covered by a wear-resistant fiberglass cloth (FGH) or Samox® cloth (SXH series).
  • Power Cord: 1.8 m long with power plug compatible with Norske Backer ACR 3 and MiniPRO™ Hot Bonders (NEMA). L15-30). Other plug options are available on request.
  • Temperature controller and high temperature thermocouples of type J are required.
