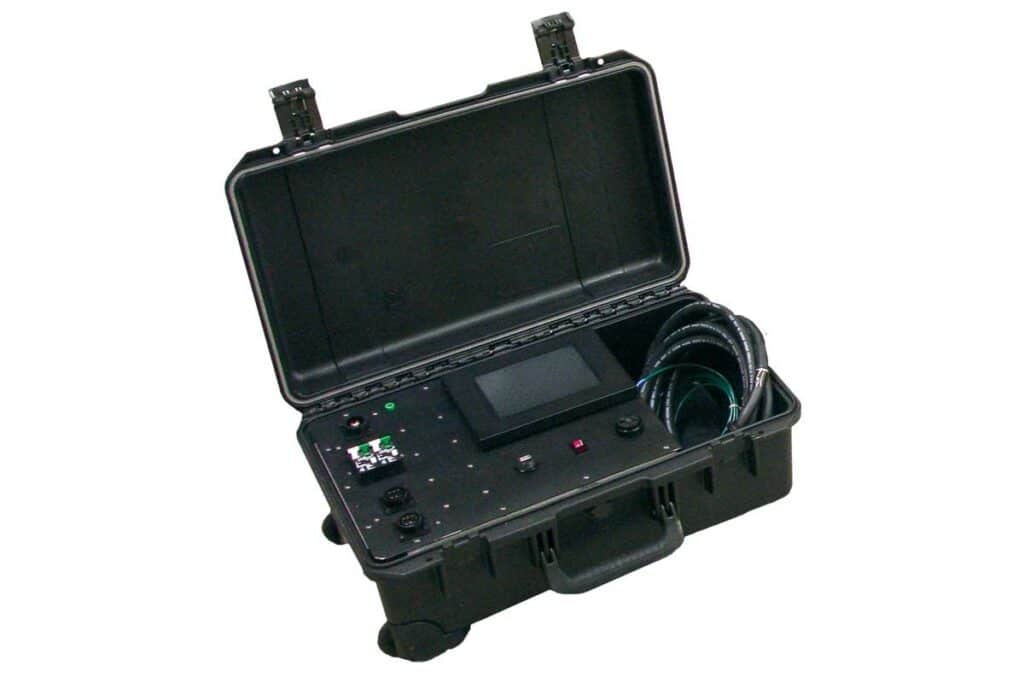

Aircraft Infrared NDT Temperature Controller

Norske Backer NDT Temperature Controller provides a portable option for performing moisture intrusion testing on elevators and other aircraft components. With a simple-to-operate pre-programmed touchscreen, this controller can manage one individual heater or two in tandem. Pair the NDT Temperature Controller with Norske Backer NDT Testing Kits and have all the necessary components you'll need for your next application.

Test data is easily stored on USB drive (included)
Portable and easy to transport - handles and wheels
Thermographic camera image

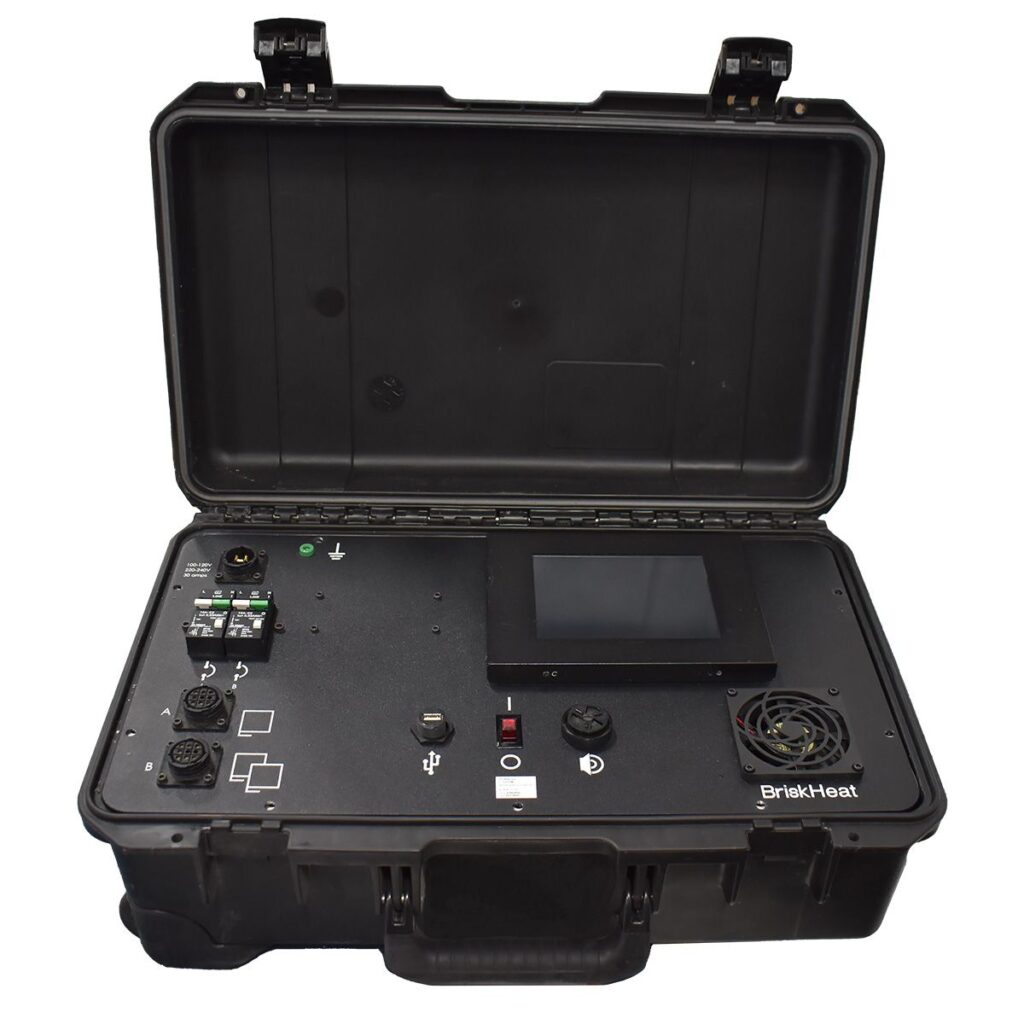

Easy-to-use full-color touchscreen

I would like more information
Please leave your contact information in the form below, and we will get in touch with you!

Input voltage: 100-240 VAC
Temperature control: Preset locked ramp/sock temperature control. Provides automatic and independent temperature control per heating element.
Temperature readings: Simultaneous reading of both thermocouples in the heating blanket.
Accuracy: ±1.8 °F (±1 °C)
Alarms: Visual or audible alarms for cycle end, earth fault, temperature limits and thermocouple failure.
Shutdown cycle: Automatic shutdown of heating element power at the end of the cycle.
Differential earth leakage switches (earth leakage switches): Included.
Countdown timer: 13 minutes.
Test cycle hours: Independent 10-minute test cycle timer, manually triggered.
Maximum process temperature protection: The cycle does not start if the process temperature is above 60 °C.
High temperature process shutdown and alarm temperature: 90 °C.
Data transfer after curing: Via USB port - USB flash drive included.
