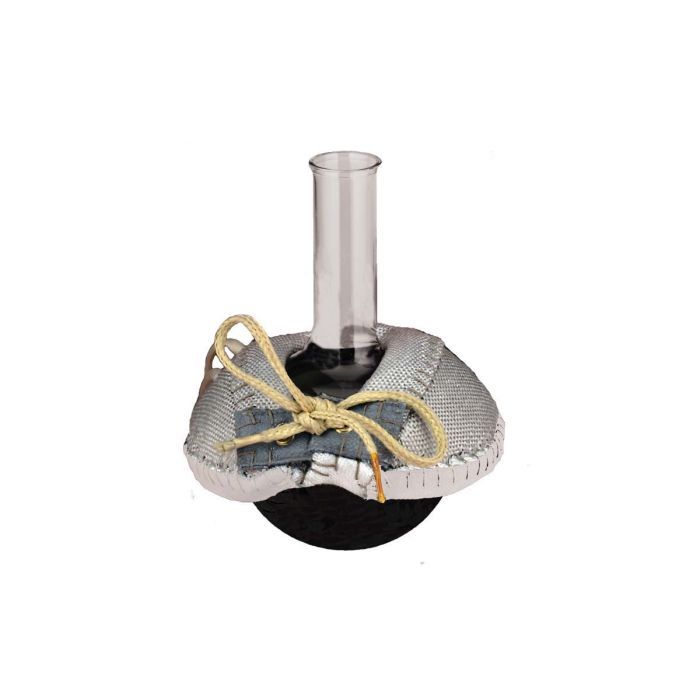

Upper hemisphere heat mantles (HM)

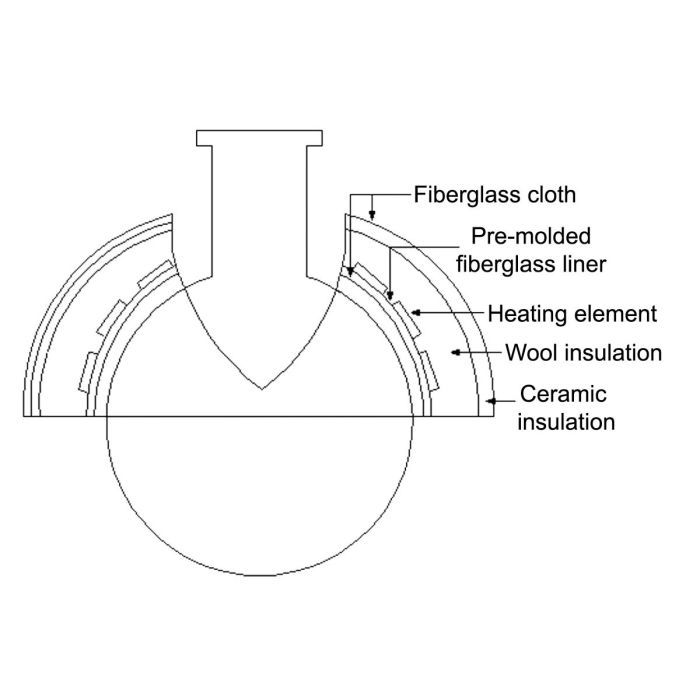

Norske Backer's upper hemisphere heating mantles provide uniform and low-power heat distribution to laboratory flasks, specifically developed for round-bottomed glass flasks. With an outer sheath of fiberglass fabric and stranded resistance wire, these heating mantles offer high flexibility, durability and safety - an excellent alternative to Bunsen burners. Although designed for glass flasks, they can also be used with metal or plastic flasks, as long as proper temperature control and product selection are used.

Note: Temperature controls are necessary for safe use.

I would like more information
Please leave your contact information in the form below, and we will get in touch with you!

Features:

- Provides even heat to the upper part of round-bottomed flasks

- Ideal for preventing condensation of steam in the upper part of the flask

- Low watt density for gentle heating

- Suitable for high temperatures, up to 842 °F (450 °C)

- Easy to mount on stand with basket ring


Available versions:

  • 120 VAC: Supplied with 76 mm connection cable with NEMA L1-15R plug and 1.2 m (4 ft) power cable

  • 240 VAC: Supplied with 76 mm connection cable without plug
