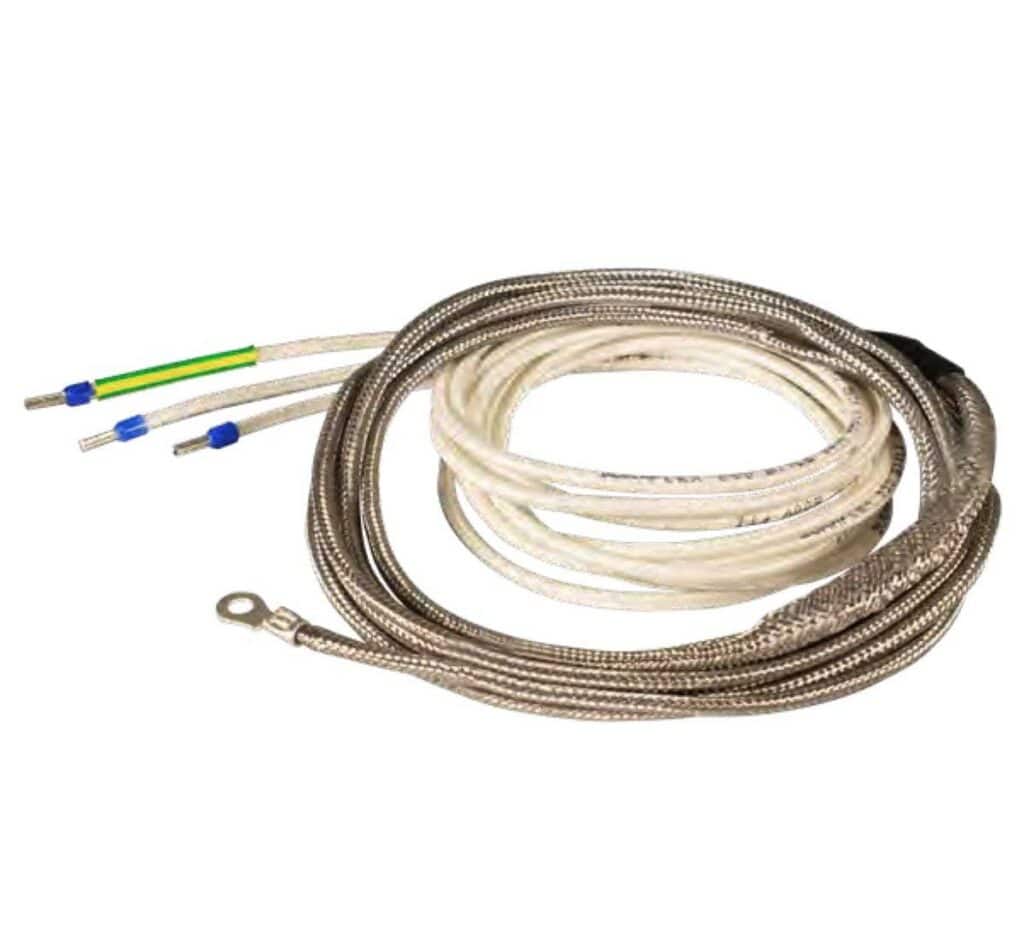

XtremeFLEX Grounded Heating Cords (HTCE)

Norske Backers HTCE grounded heating cords are a multi-stranded resistance wire heating element are designed for use on small tubes, vessels, or any application where space is limited. Made with a fiberglass outer sheath and rapid thermal response, these cords are flexible, durable and safe to use with electrically conductive surfaces when accurate heat is needed. Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.

Temperature controller is required for safe operation of this product.

Maximum Exposure Temperature:
- Removable and reusable: up to 842 °F (450 °C)
- Easy installation: up to 1400 °F (760 °C)

- Available in a range of lengths and configurations
- Includes 9 inch (230 mm) long high temperature brackets for secure, easy installation
- High temperature grounded, CE approved

I would like more information
Please leave your contact information in the form below, and we will get in touch with you!

Additional Features:

Exceptional flexibility - can be wrapped around objects as small as 1/8 in (3 mm) diameter
Rapid Thermal Response
Grounded and non-grounded models
Easy to use

Note:

Temperature controller is required for this product
Custom sizes and designs are available, contact us for more information

Maximum Exposure Temperature:

Removable and Reusable: Up to 450°C (842°F)
Single Installation Use: Up to 760°C (1400°F)

Power density:
- 60 W/m (18 W/ft)
- 120 W/m (37 W/ft)

Width: 6.6 mm (0.26 in)
Power Leads: 1.5 m (60 in) long with ferrule crimp terminated leads
Minimum Bend Radius: 4.7 mm (0.1850 in)
Ingress Protection Rating: IP50
